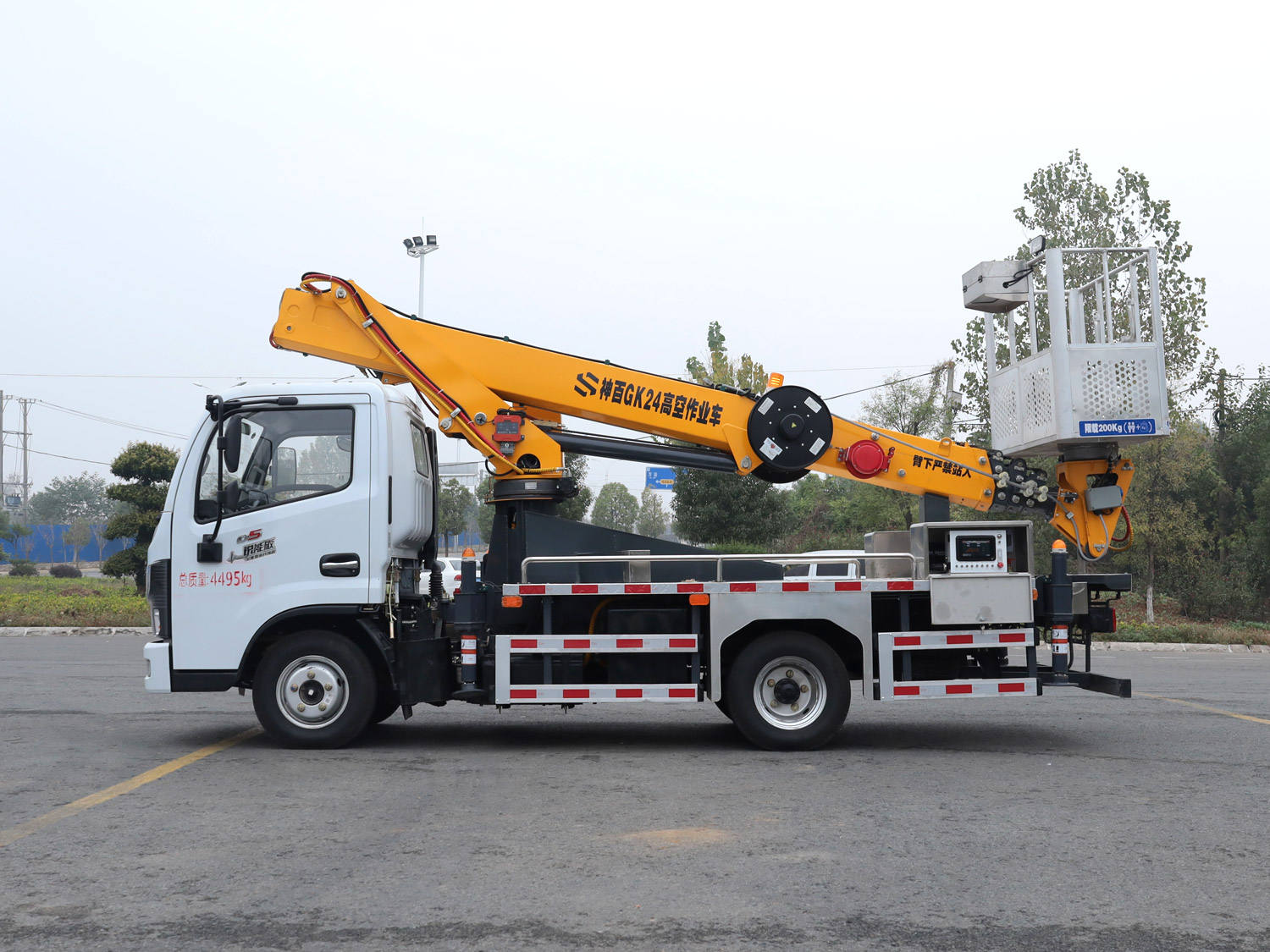

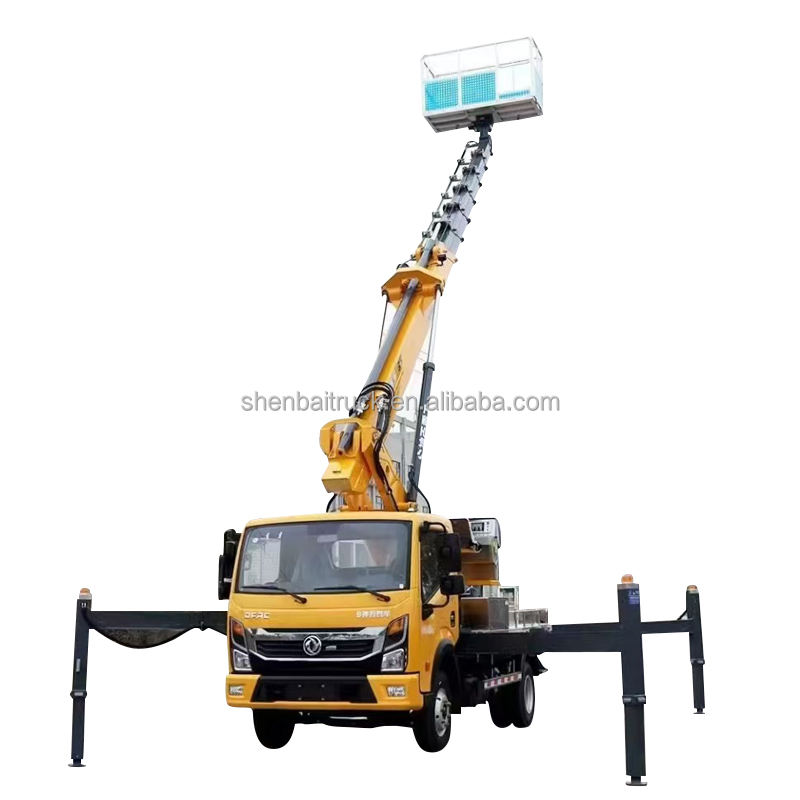

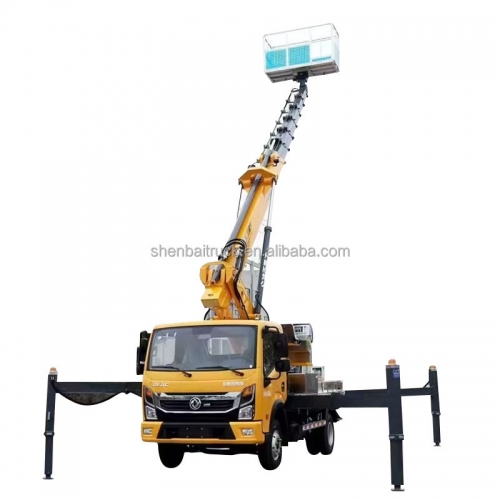

Dongfeng 4x2 24M High Altitude Aerial Work Platform Truck
China's aerial work vehicle industry has the following industrial characteristics:(1) Multi variety and small batch. As the product demand involves street lamp, garden, electric power, petrochemical, communication and other industries, the product uses are different, and the requirements for product specifications, technical parameters and other indicators are quite different. The industrial products have the characteristics of strong specificity, prominent personalized requirements, many varieties and specifications, small market segmentation scale and so on. The production batch of products of each specification is small.
(2) The product has the characteristics of high technical requirements and high added value. Aerial work vehicle products involve technologies in many fields such as automobile, machinery, electrical, computer and automation. It is a typical technology intensive product, and customers have high requirements for product safety and handling. Enterprises must have strong R & D ability to meet customer requirements. At the same time, products, especially customized products with high operation height and special needs of power industry, usually have high single value and high added value.
PRODUCT SPECIFICATIONS
| General Parameter | |
| Name | Dongfeng 4X2 Truck with 24m Aerial Work Platform Truck |
| Dimension |
5995*2200*3150mm |
| GVW | 10000kg |
| Wheelbase | 3300mm |
| Steering wheel | LHD |
| Emission standard | EURO 3/4/5/6 |
| Driving type | 4x2 |
| Tire quantity | 6+1 (spare tire) |
| Brake | Air Brake |
| Max speed | 90(km/h) |

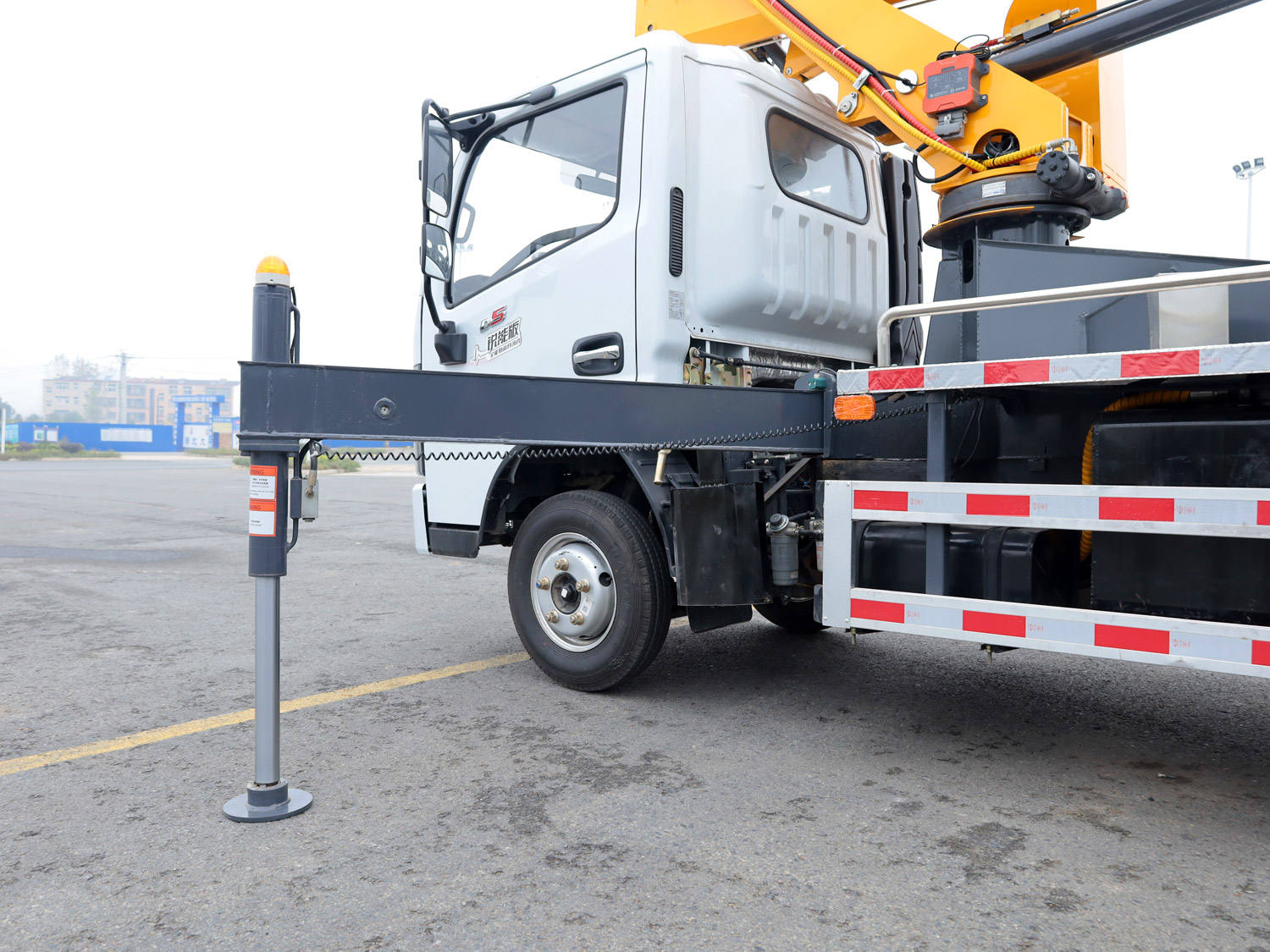

| Outrigger Span | Double-section outriggers, longitudinal/transverse span：5150mm/4500mm |
| Max Lifting Height | 24M |
| Working Radius | 12M |
| Engine parameter | |
| Engine | Yuchai 120hp |
| Engine type | In-line 4 cylinder, supercharged and intercooled |
| Horsepower | 120 hp/90Kw |
| Displacement | 4.2L |
| Emission standard | EURO 3/5 |
| Max torque | 380 N.m @ 1400-1800 rpm |
| Rated speed | 2800 rpm |
| Cab parameter | |
| Cab type | Dongfeng Cab |
| Crew seat | 3 |
| Cab standard configuration |
Air conditioning, Power steering wheel, Radio,Music |
| Aerial Work Platform |
|

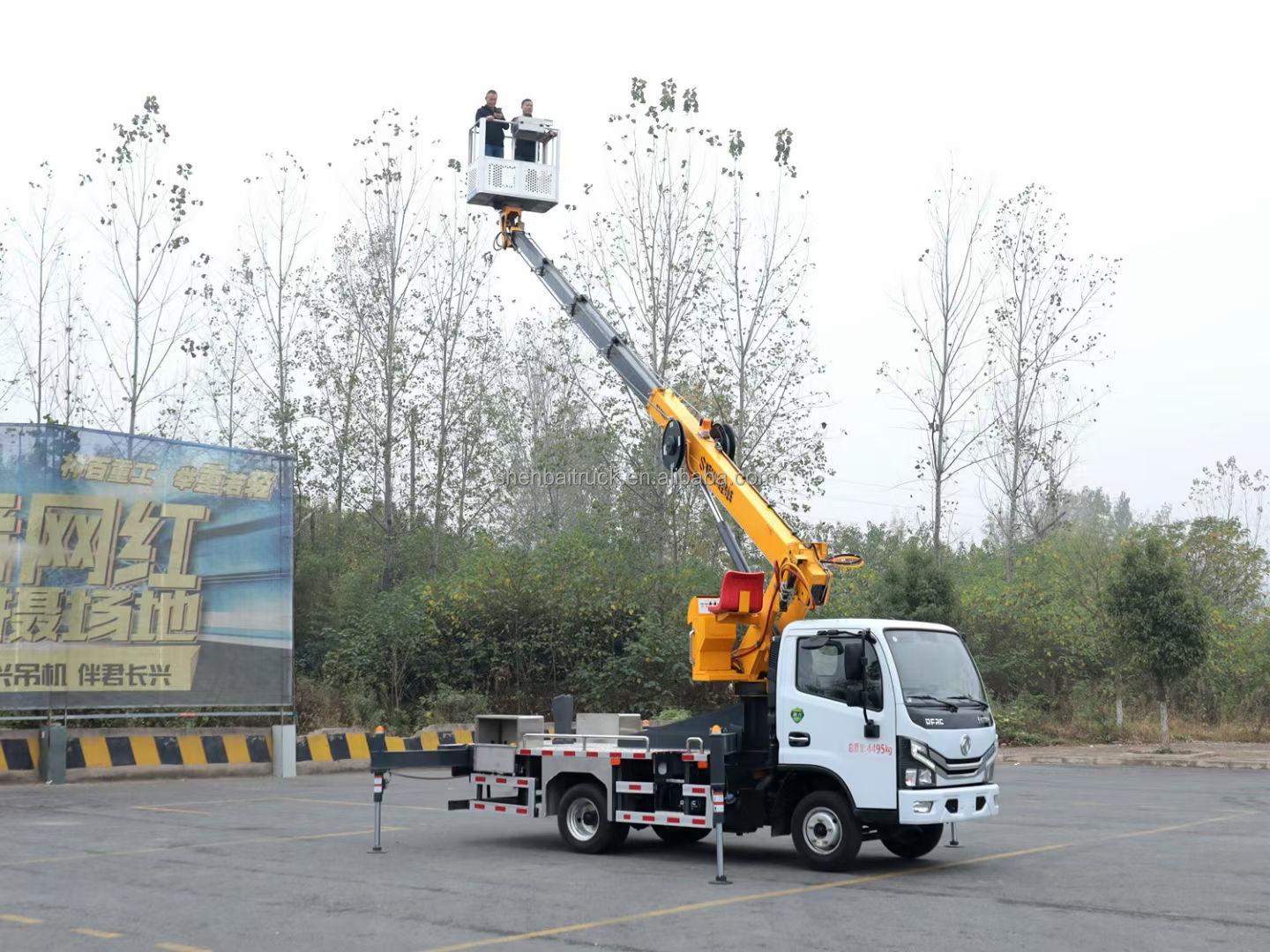

| Max working height | 24m |
| Max boom outreach | 12m |
| Slewing angle(continuous) | 360°continue rotation |
| Platform Rated Load | 200kg |
| Platform Dimensions | 1800mm × 700mm × 1100mm |
| Boom | 4-section boom with 3-section synchronized extension |
| Operating System | Well-known electronic control system, equipped with wireless remote control, featuring a central control panel with display screen.Rotating Table Hydraulic Handle Operation with Seat |
| Hydraulic System | Electro-hydraulic Proportional Valve with Stepless Speed Control and Emergency Power Supply |

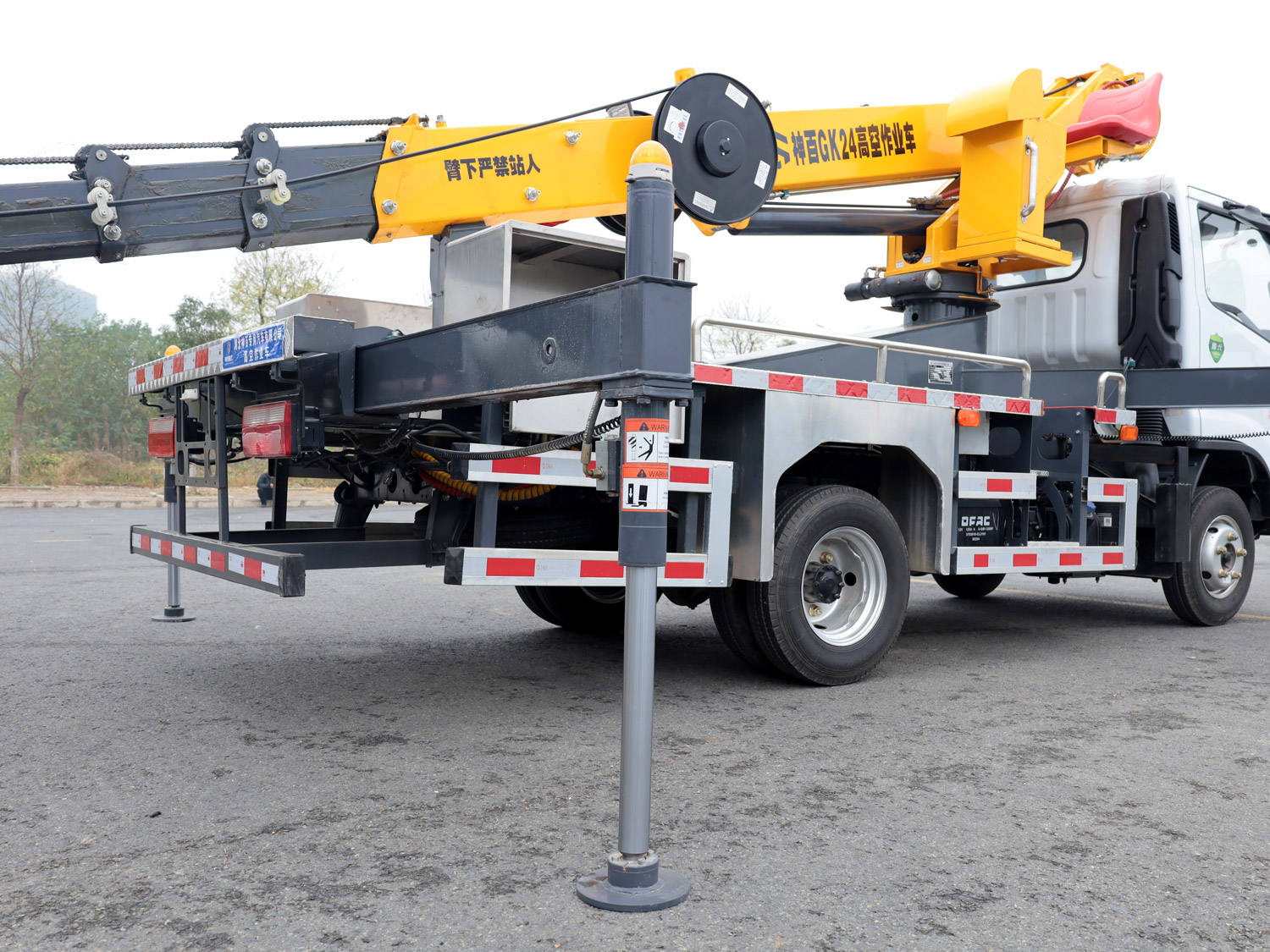

| Hydraulic Legs | Front V-shaped and rear H-shaped square outriggers |

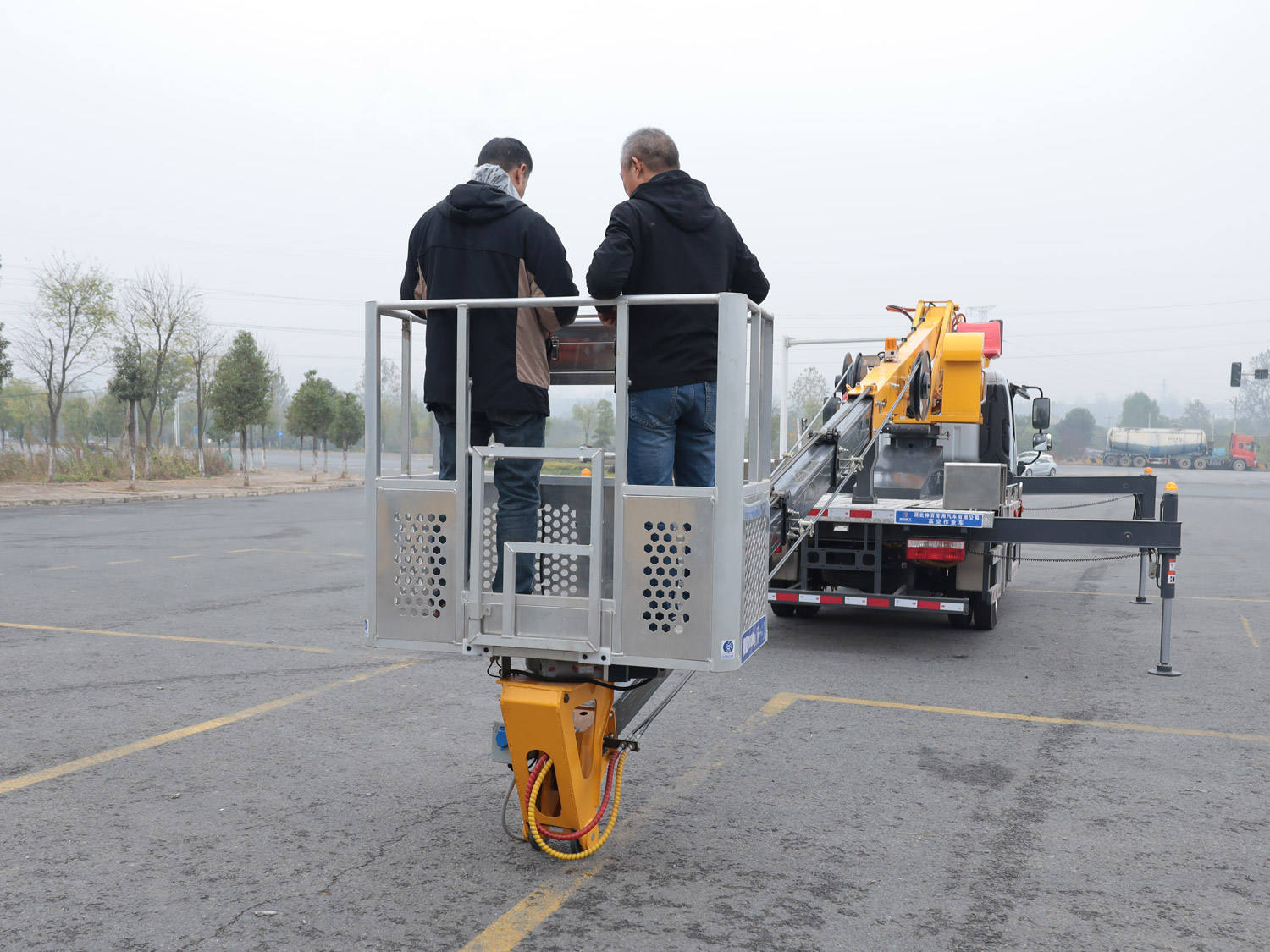

| Walkway Plank | Insulated hanging basket, platform equipped with stainless steel guardrail |
| Safety Devices | Interlock for boarding/alighting Emergency power source Bi-directional hydraulic balance valve Soft leg protection Radiator 220V external power supply |
FAQ
1.where is your company?
Our company is located in the city of Suizhou, Hubei province, China.
2.What are the advantages of your company compared with others?
we are located in Suizhou, where is a well-known city for construction machinery.
competitive price:
with more than five years international trading, based on numerous feedback from our oversea customers, our price are believed to be the most favorable.
fast delivery:
normally, we could have an immediate delivery of regular machines for our clients.
3.How do I choose the crane I need?
Our professional sales managers would recommend you the most desirable product to you according to your working condition.
4.What logistics ways you can work for delivery?
We can delivery the product by various transportation means.
In most cases, we will go by sea, such as South America, Middle East,Africa, etc.
Apart from that, we also could delivery cranes by roads or railways, such as Russia, Mongolia, etc.
5.Are your products customized?
Yes, due to different working conditions,all our trucks are customized.The more details you give us about your desirable truck the more accurate solution we can provide.
6.Which kind of information should I inquire when I buy a truck mounted crane?
The details in terms of the max lifting height, lifting capacity, rated load should be necessary.Apart from that, the working
condition(materials to lift；local temperature)can also be important.
7.Can you provide special lifting tools?
Yes, various kinds of lifting tools are accessible such as grabs,hooks......
