Description
The truck mounted crane also calls boom truck,crane truck,unic crane, crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane,boom crane, boom crane truck, articulated crane truck,is a kind of equipment that realizes the lifting, turning, and lifting of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment, power take-off and crane.It is designed for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses . General materials lifting of various size and load with standard hook arrangement for construction sites, mines, projects, logistics requirements..

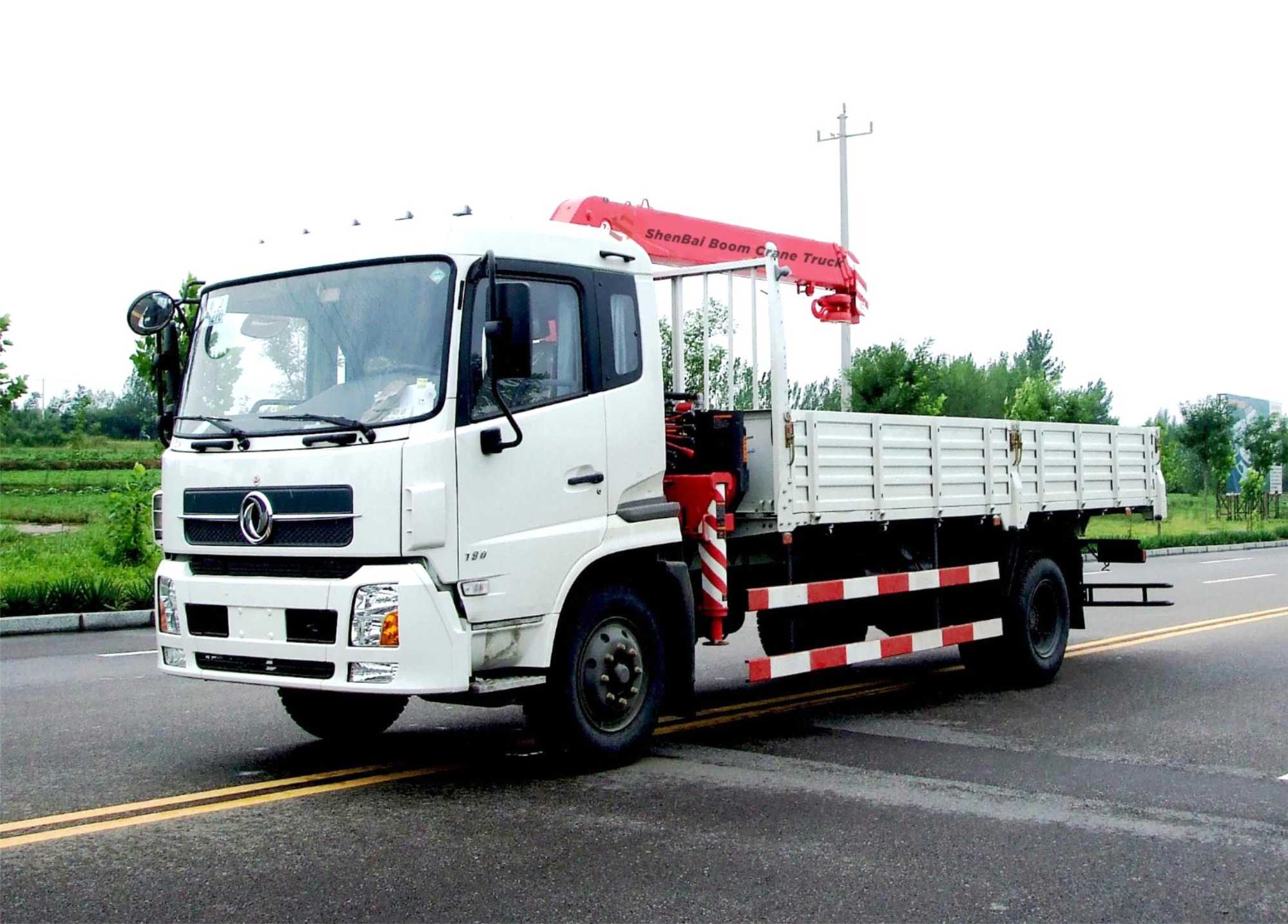

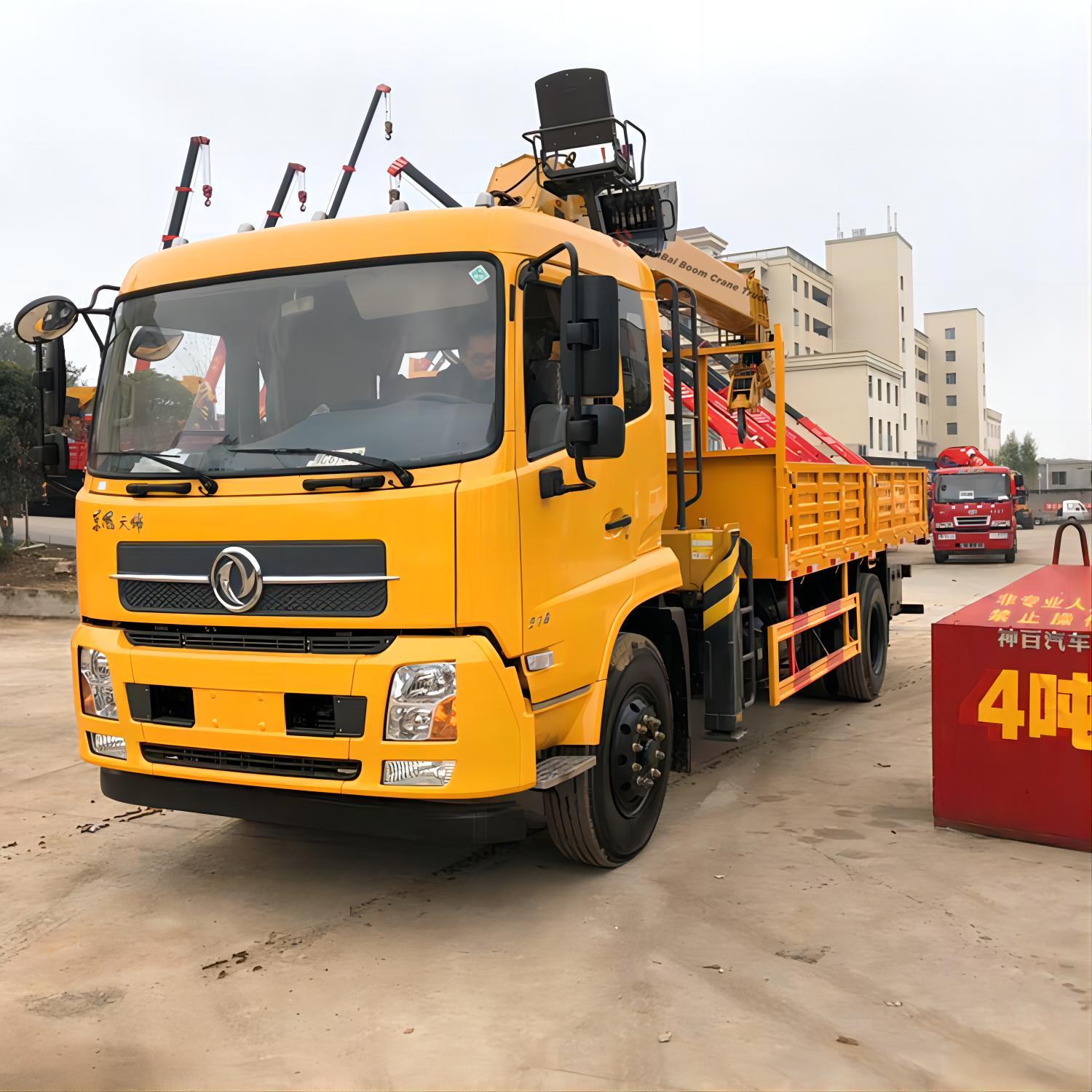

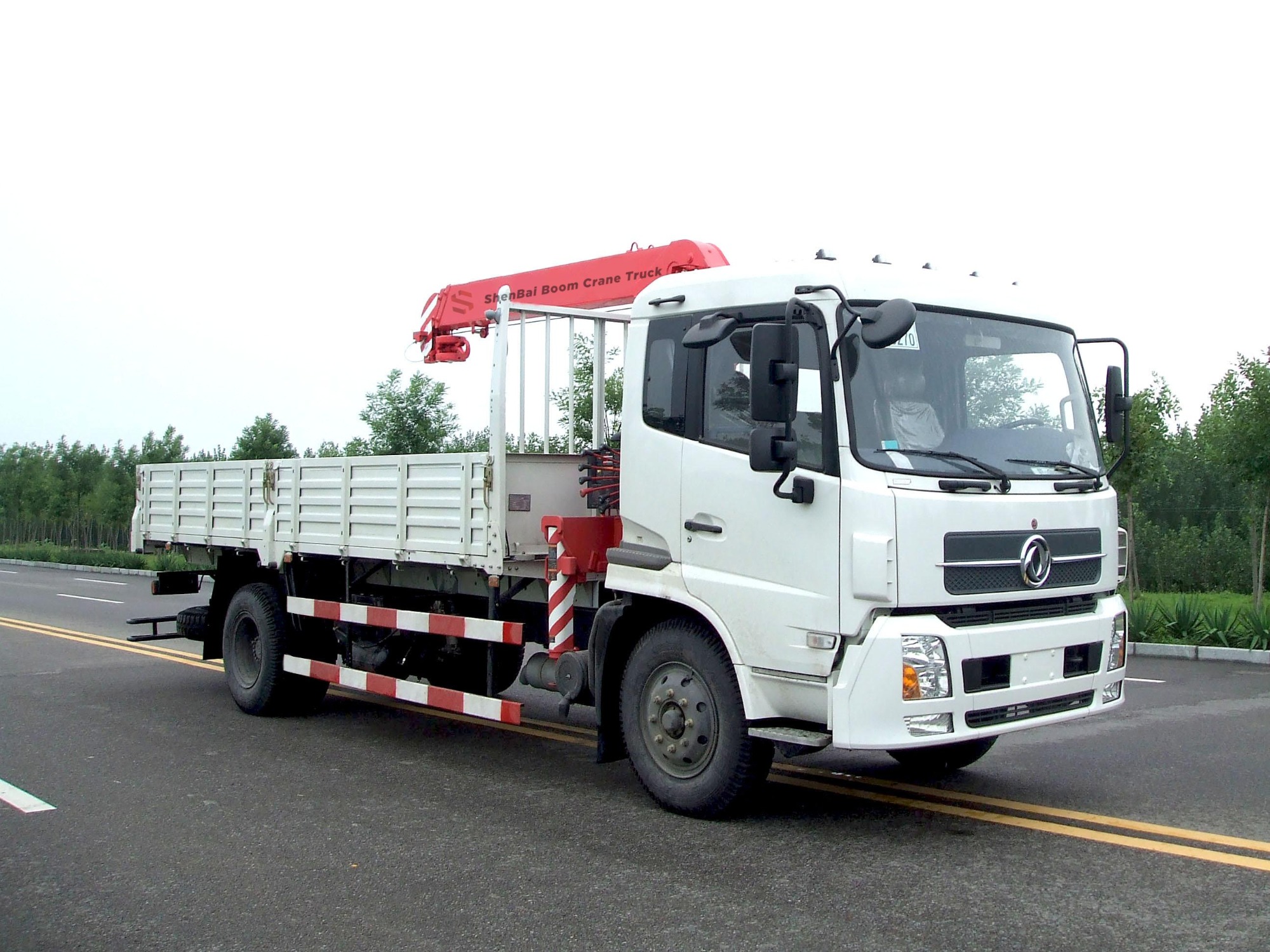

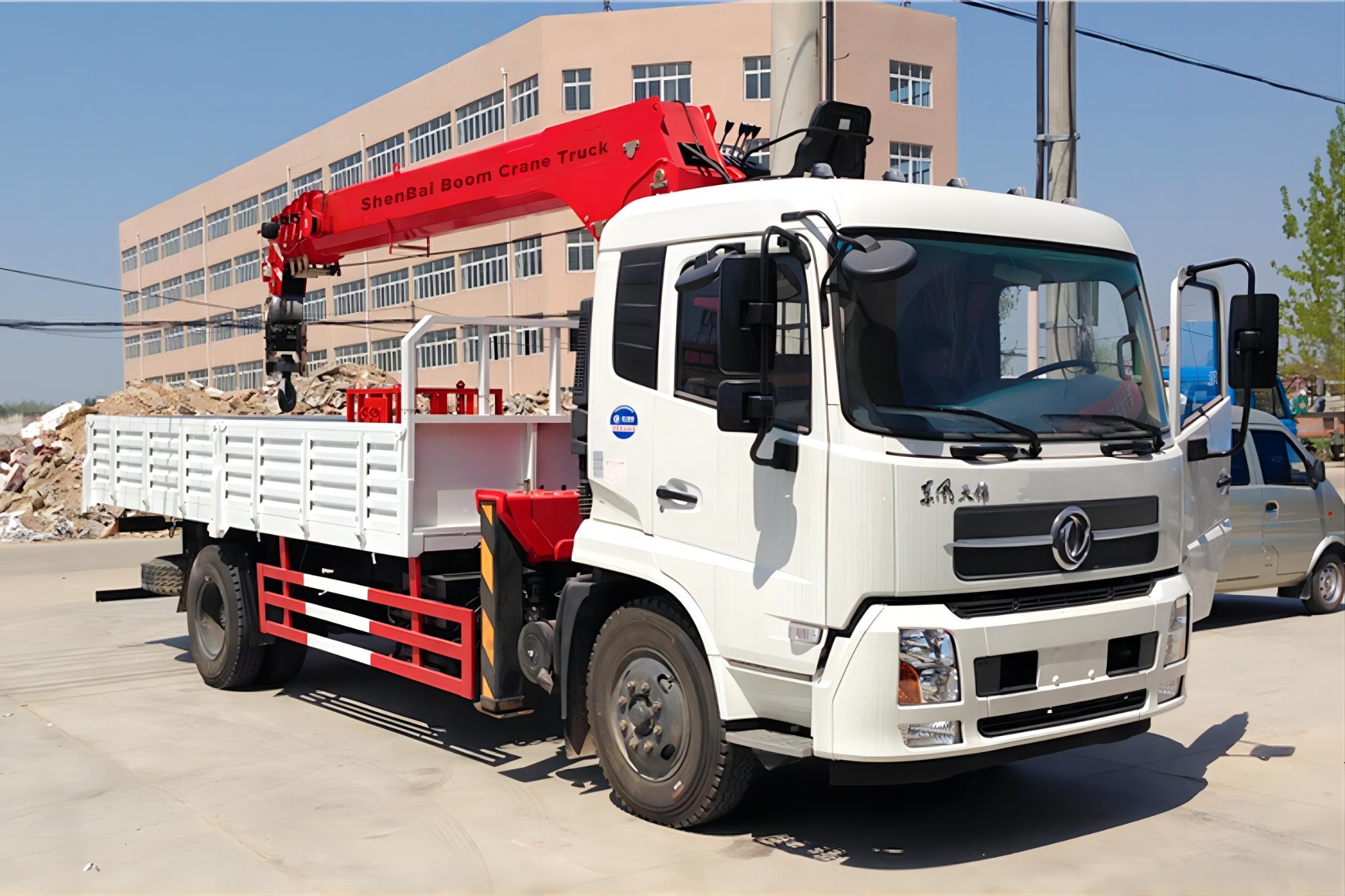

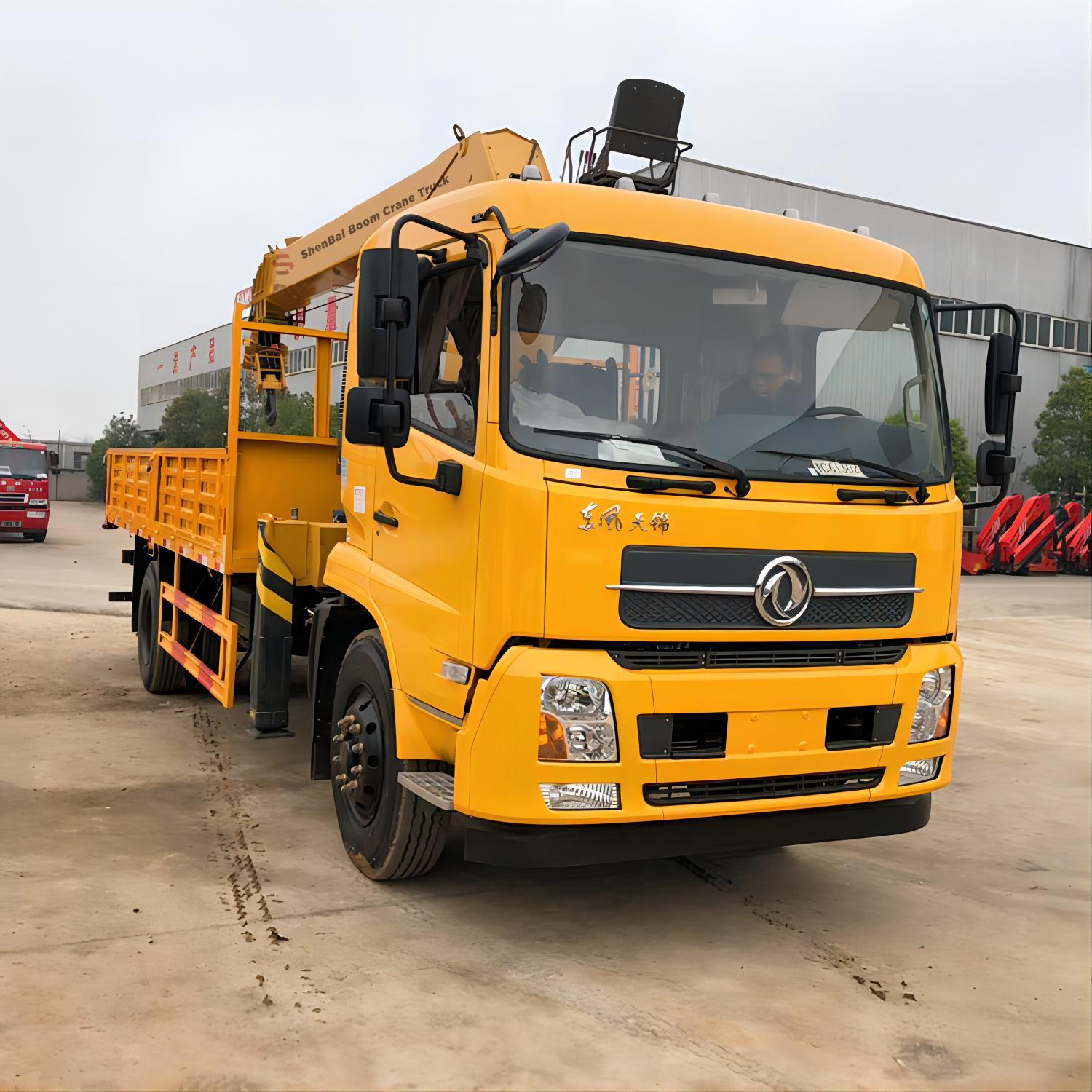

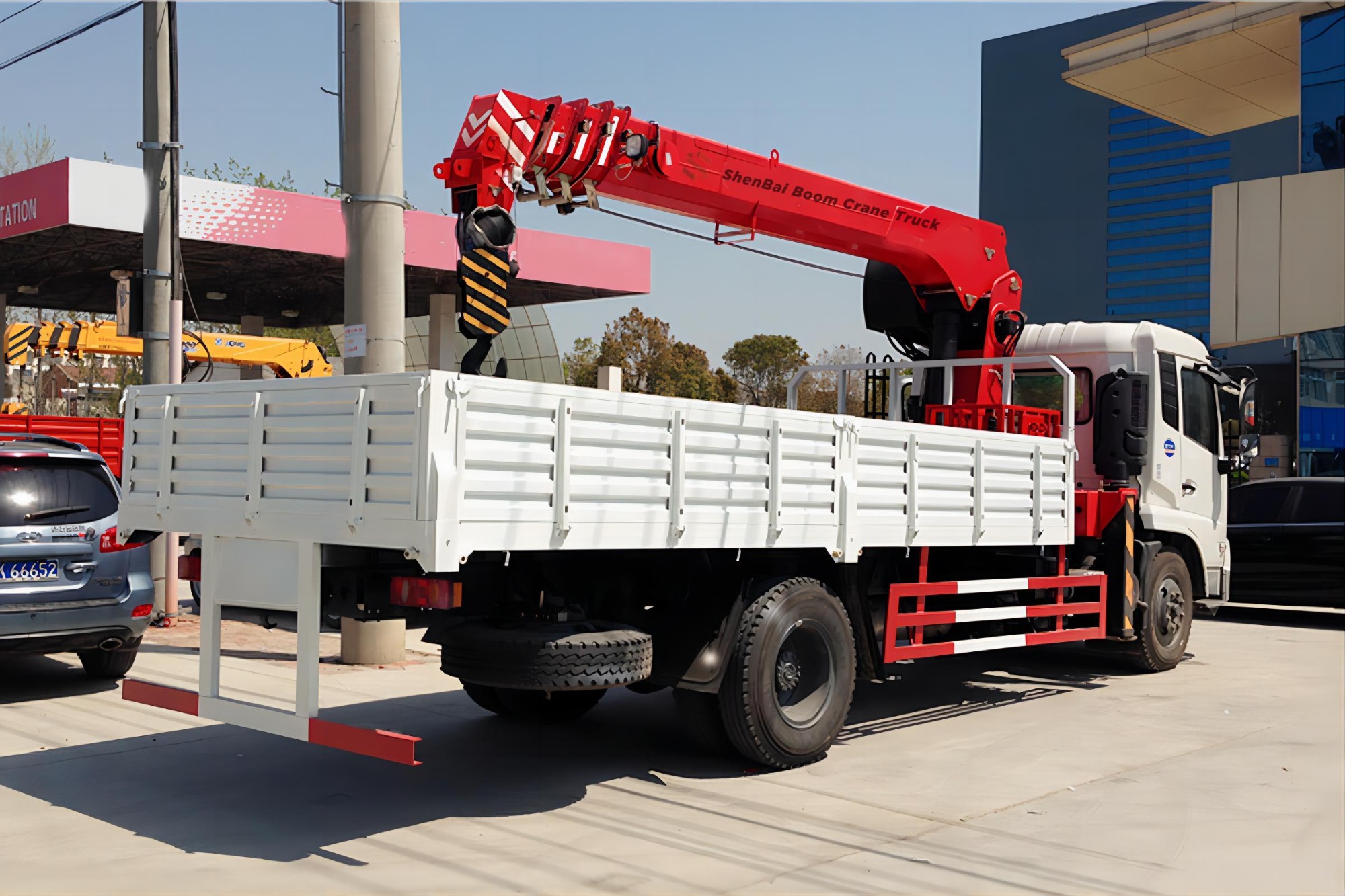

Hydraulic Telescopic Boom Crane Shenbai 8Ton Dongfeng 4x2 Crane Truck
There are straight telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:Straight Telescopic Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton.
Knuckle Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton,27Ton,30Ton,32Ton,35Ton,40Ton,etc
The cranes can be of famous brands as Palfinger, Unic, Tadano, X-CMG, Zoom-lion,CX brand, etc.
Our company also offer DONGFENG,ISUZU,Foton,Sinotruk Howo,FAW,Shacman for your choice.
Our truck with crane also install Remote Control,Brick clamping apparatus,different kinds of grab bucket,work basket,etc.
PRODUCT SPECIFICATIONS
| General | |||||
|
Dongfeng 4x2 truck with crane | Chassis brand | Dongfeng | ||
| Dimension | 6000x2550x3850 | GVW | 18000kg | ||
| Engine | |||||
| Fuel tyep | Diesel | Engine brand | Cummins/Yuchai | ||
| Power | 120-245HP | Emission standard | EURO 3/4/5/6 | ||
| Chassis | |||||
| Drive type | 4x2 LHD/RHD | Cargo Box | 4500-6000x2450x600 | ||
| Transmission | Manual,Fast 8 speedgearbox | Wheelbase | 3360/3950/4500/4700 | ||
| Tyre Specification | 10.00R20 Max speed | 89km/h | |||
| Paint | As your requirement | ||||
| Superstructure | |||||
| Crane type | straight boom crane | Crane lifting capacity | 7Ton | ||
| Crane section | 4-section | Crane weight | 3300kg | ||
| Max lifting height | 14.1m | Max working radius | 12.5m | ||
| Rotation Angle | Full rotation of 360° |
Outrigger | 2 PCS front legs |
||
Details Images
FAQ
1.where is your company?
Our company is located in the city of Suizhou, Hubei province, China.
2.What are the advantages of your company compared with others?
we are located in Suizhou, where is a well-known city for construction machinery.
competitive price:
with more than five years international trading, based on numerous feedback from our oversea customers, our price are believed to be the most favorable.
fast delivery:
normally, we could have an immediate delivery of regular machines for our clients.
3.How do I choose the crane I need?
Our professional sales managers would recommend you the most desirable product to you according to your working condition.
4.What logistics ways you can work for delivery?
We can delivery the product by various transportation means.
In most cases, we will go by sea, such as South America, Middle East,Africa, etc.
Apart from that, we also could delivery cranes by roads or railways, such as Russia, Mongolia, etc.
5.Are your products customized?
Yes, due to different working conditions,all our trucks are customized.The more details you give us about your desirable truck the more accurate solution we can provide.
6.Which kind of information should I inquire when I buy a truck mounted crane?
The details in terms of the max lifting height, lifting capacity, rated load should be necessary.Apart from that, the working
condition(materials to lift；local temperature)can also be important.
7.Can you provide special lifting tools?
Yes, various kinds of lifting tools are accessible such as grabs,hooks......
